LIVESTOCK PANELS

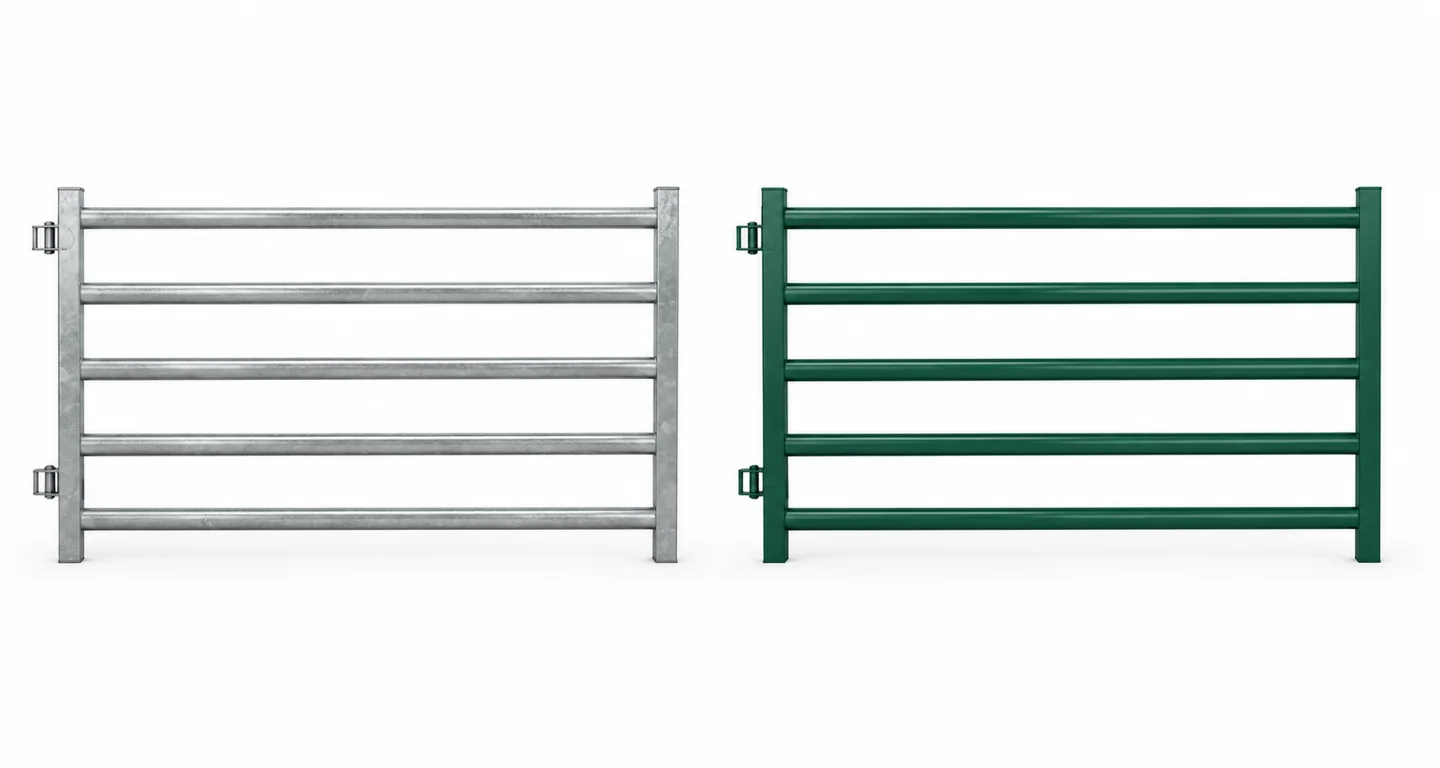

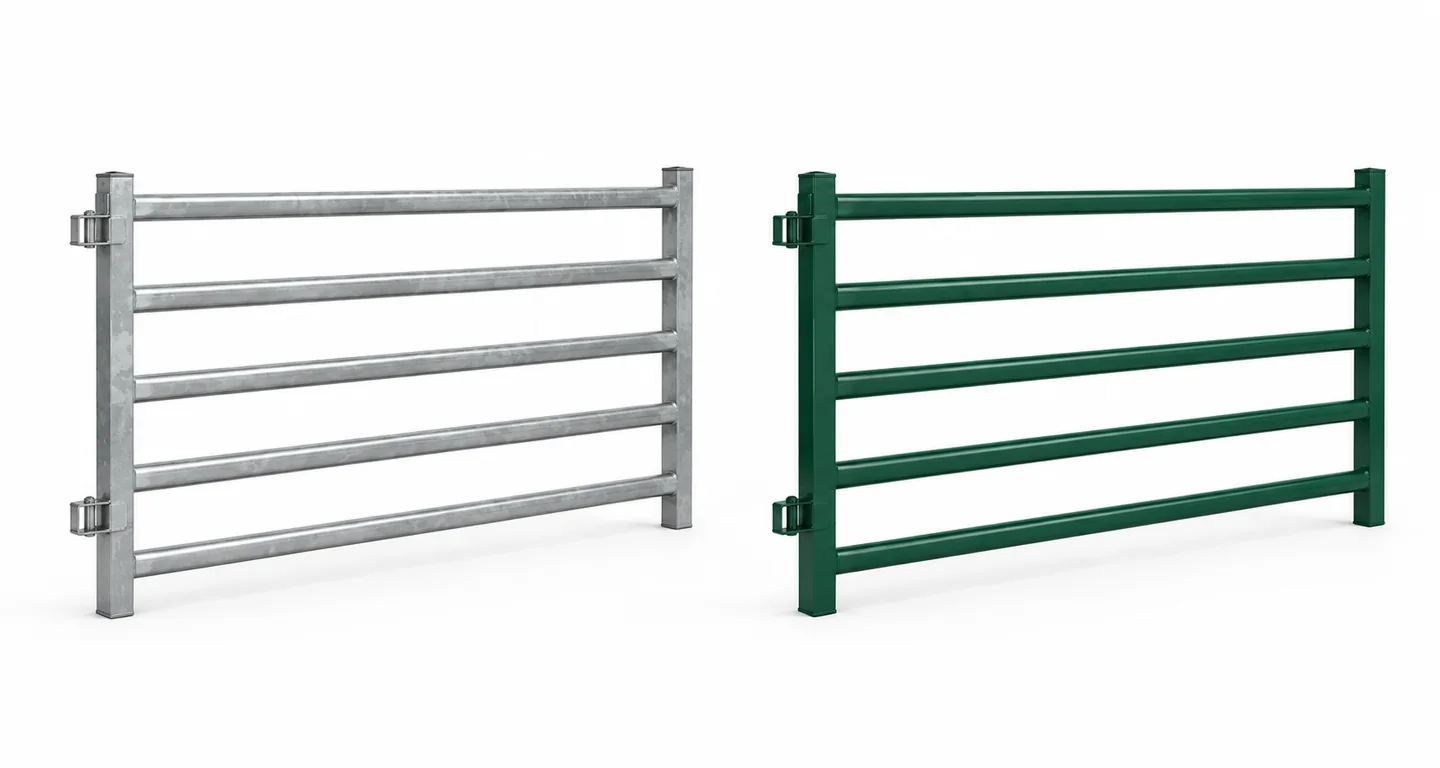

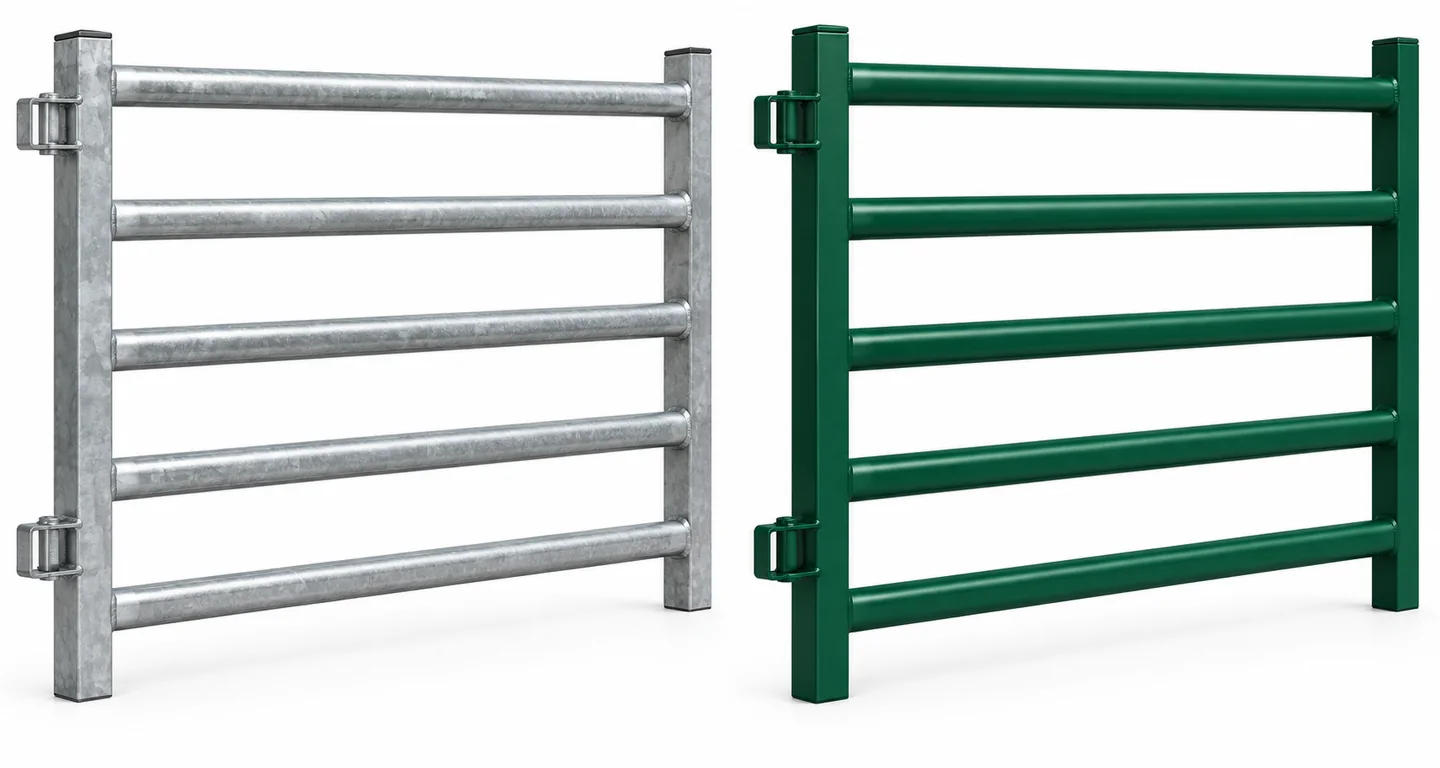

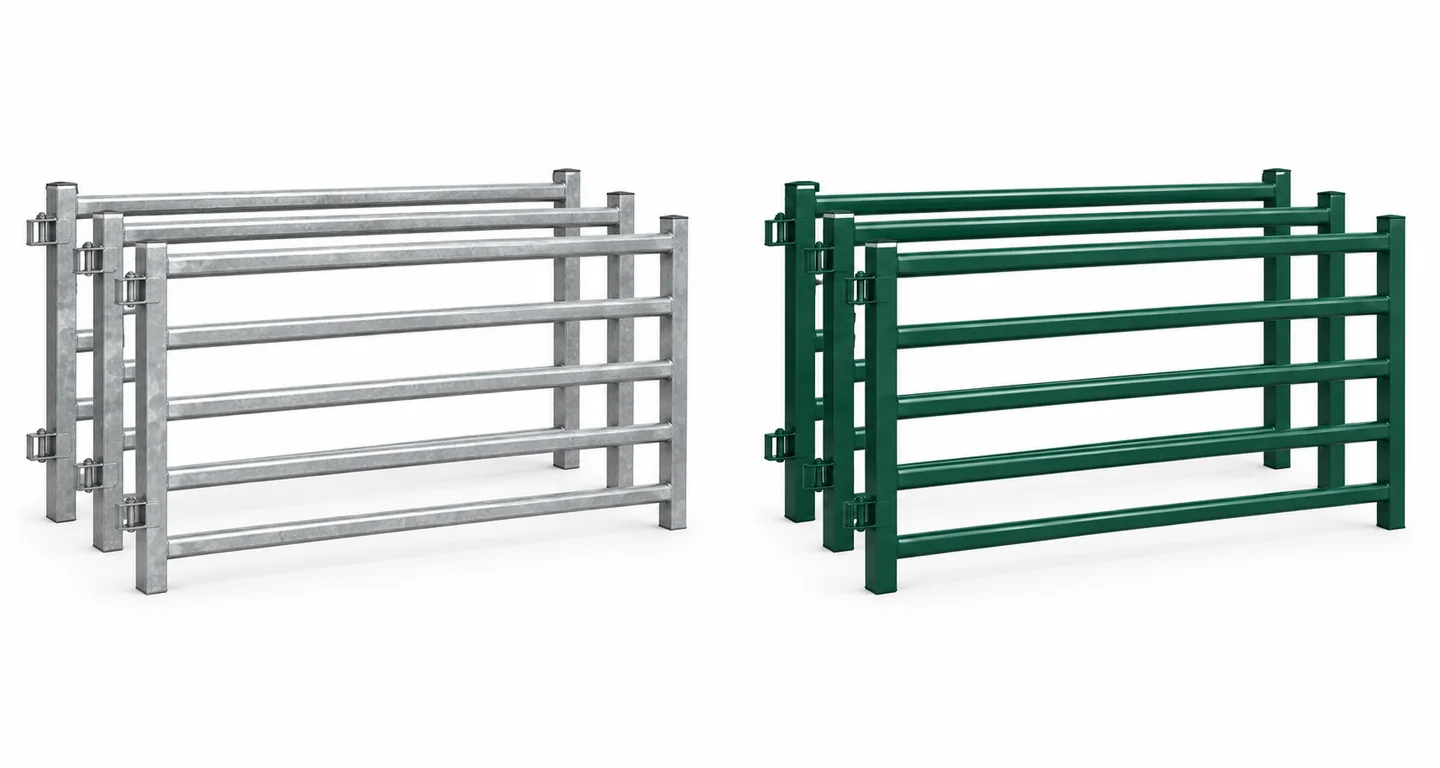

5-Rail Livestock Panel
A practical five-rail panel for everyday yard layouts.
The 5-rail panel is a flexible choice for paddocks, perimeter runs and livestock yards. Its open rail layout helps define working areas while the length, height and connections can be specified for your project.
Five-Rail Layout
Flexible Lengths
Welded Steel Frame
Connection Options
✓ Custom Dimensions✓ Finish by Request✓ Final Specs by Drawing
Key Specifications
| Reference Panel Length | 2.1 / 2.4 / 3.0 m reference options |
|---|---|
| Reference Panel Height | 1.4–1.6 m reference range |
| Rail Layout | 5 horizontal rails |
| Tube Section | Approx. 32–42 mm OD; section by drawing |
| Wall Thickness | Approx. 1.6–2.0 mm reference range |
| Material | Welded steel tube; grade confirmed in quotation |
| Finish | Galvanized or powder-coated option, subject to quotation |
| Connections | Pins, chains or compatible fittings by project |
Reference configurations for planning only, based on comparable industry products. These are not confirmed HRC stock specifications. Final dimensions, material, finish and fittings are customized and confirmed in the quotation and approved drawing.
Why Choose Our 5-Rail Livestock Panel?
Five-Rail LayoutFive horizontal rails create a clear, open barrier.
Flexible LengthsPlan a 2.1–3.0 m reference span or request another size.
Welded Steel FrameDiscuss tube section and wall thickness for your site.
Connection OptionsSpecify compatible pins, chains or clamps.
Made to FitConfirm dimensions and finish in the project drawing.
5-Rail Livestock Panel Applications
Typical uses for this product. Images show the product, not installed-site photographs; confirm suitability for your project.
General Farm Yards
Define working areas with compatible panel connections.
Low-Pressure Holding Areas
Confirm rail spacing and loading for the animals.
Options and Finishes
Specify the size and finish of your 5-rail livestock panel with your order.
Hot-Dip Galvanized
By quotation
Powder Coated
By quotation
Custom Sizes
To approved drawing
Detailed Structural Photos
Review the connections and fabrication details of the selected 5-rail livestock panel design.
Post Connection Detail
Rail Welding Detail
End Post Design
Custom 5-Rail Livestock Panel Support
Share your site dimensions, animal type and layout. We can discuss the rail arrangement, steel tube sections, connection hardware and finish for a 5-rail livestock panel made to your approved drawing.
OEM / ODM Available
Custom Sizes and Designs
Professional Engineering Team
Fast Production and Delivery
Frequently Asked Questions
What reference sizes are available for a 5-rail panel?
Planning examples include 2.1, 2.4 and 3.0 m lengths with a 1.4–1.6 m height range. The final size is made to the approved drawing.
How many rails does this panel have?
The layout shown uses five horizontal rails. Rail spacing and tube sections are confirmed for each order.
Can this panel be used for smaller animals?
That depends on rail spacing, animal age and site conditions. Ask for a closer-spaced or mesh-assisted design where needed.
Which finish can I request?
Ask about galvanized or powder-coated options for the selected design. Availability and coating specification are confirmed in the quotation.
How are panels connected?
Pin, chain or clamp arrangements may be specified to suit compatible posts and adjoining panels.
Get a Quote for Your 5-Rail Livestock Panel
Send us your target dimensions, livestock type and site plan. We will confirm a custom specification and quotation.
