LIVESTOCK PANELS
Horse Panel

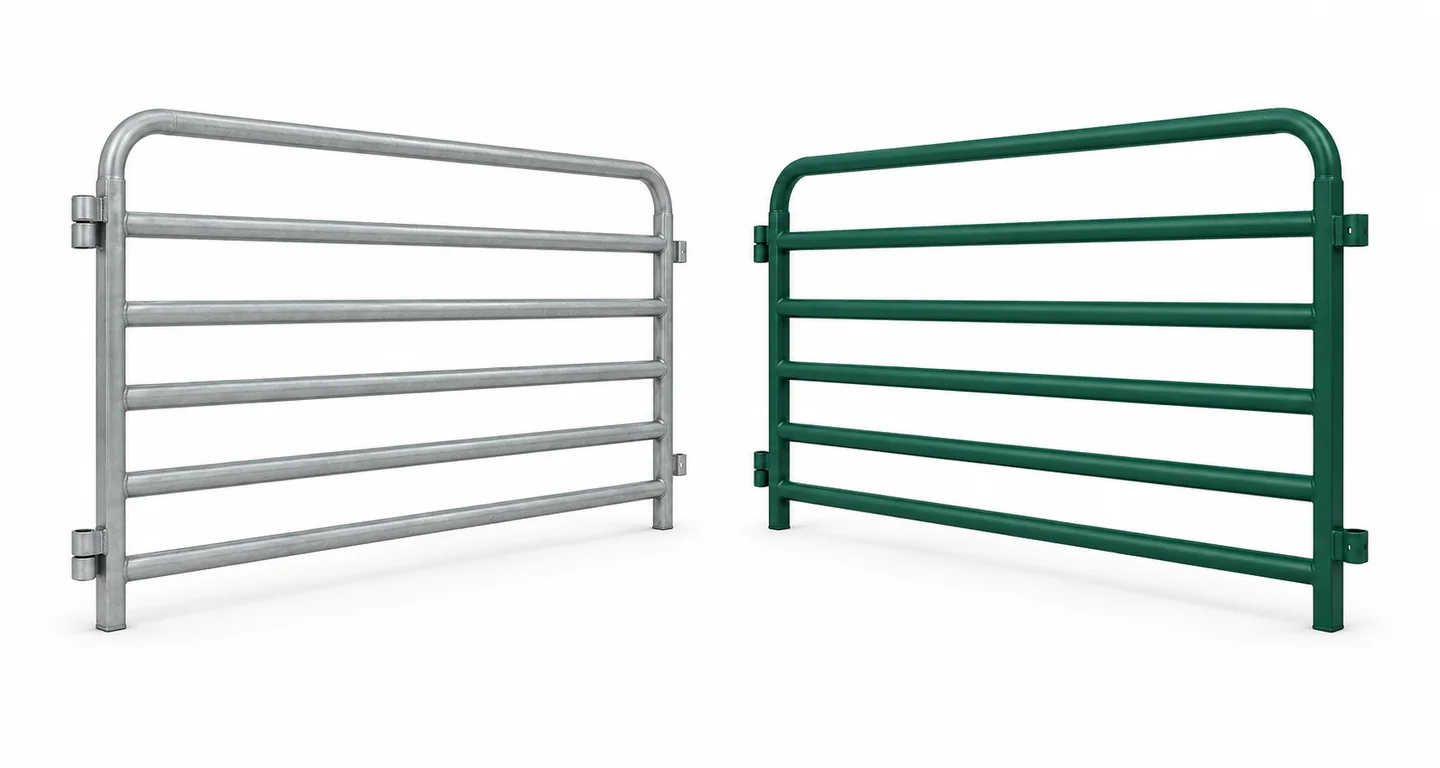

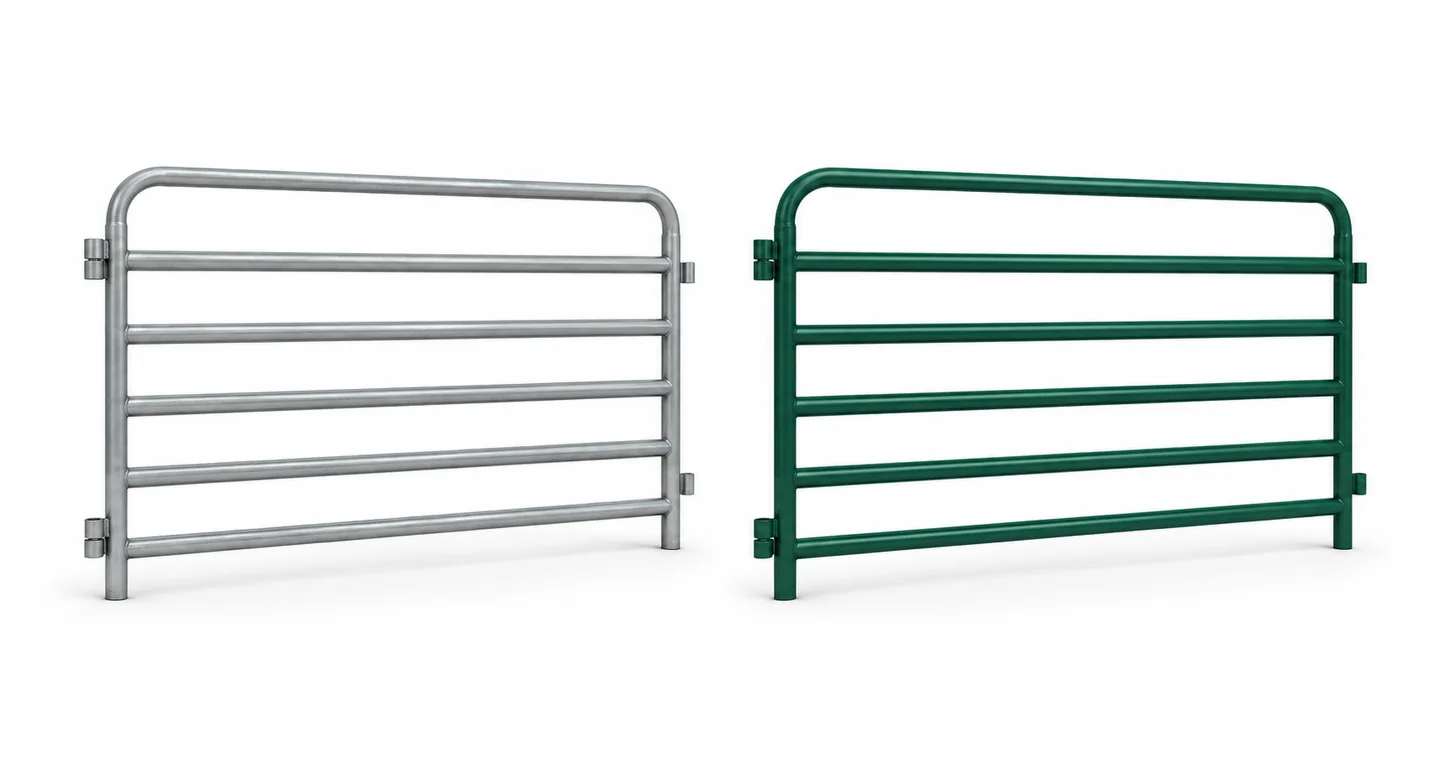

A panel layout planned for horse facilities.
Horse panels can be configured for paddocks, round pens and temporary or fixed horse yards. Smooth, practical rail arrangements and suitable connections should be selected for the horses and the way the enclosure is used.
Horse Yard Layout
Smooth Rail Profile
Modular Arrangement
Practical Access
✓ Custom Dimensions✓ Finish by Request✓ Final Specs by Drawing
Key Specifications
| Reference Panel Length | 2.1 / 2.4 / 3.0 m reference options |
|---|---|
| Reference Panel Height | 1.5–1.8 m reference range |
| Rail Layout | 5 rails as an example; spacing by design |
| Tube Section | 40 × 40 mm frame or 59 mm oval rail examples |
| Wall Thickness | Approx. 1.6 mm reference example |
| Material | Welded steel tube; grade confirmed in quotation |
| Finish | Galvanized or powder-coated option, subject to quotation |
| Connections | Pins, chains or compatible fittings by project |
Reference configurations for planning only, based on comparable industry products. These are not confirmed HRC stock specifications. Final dimensions, material, finish and fittings are customized and confirmed in the quotation and approved drawing.
Why Choose Our Horse Panel?
Horse Yard LayoutPlan panel height and spacing for the horses on site.
Smooth Rail ProfileDiscuss tube shapes and accessible edges.

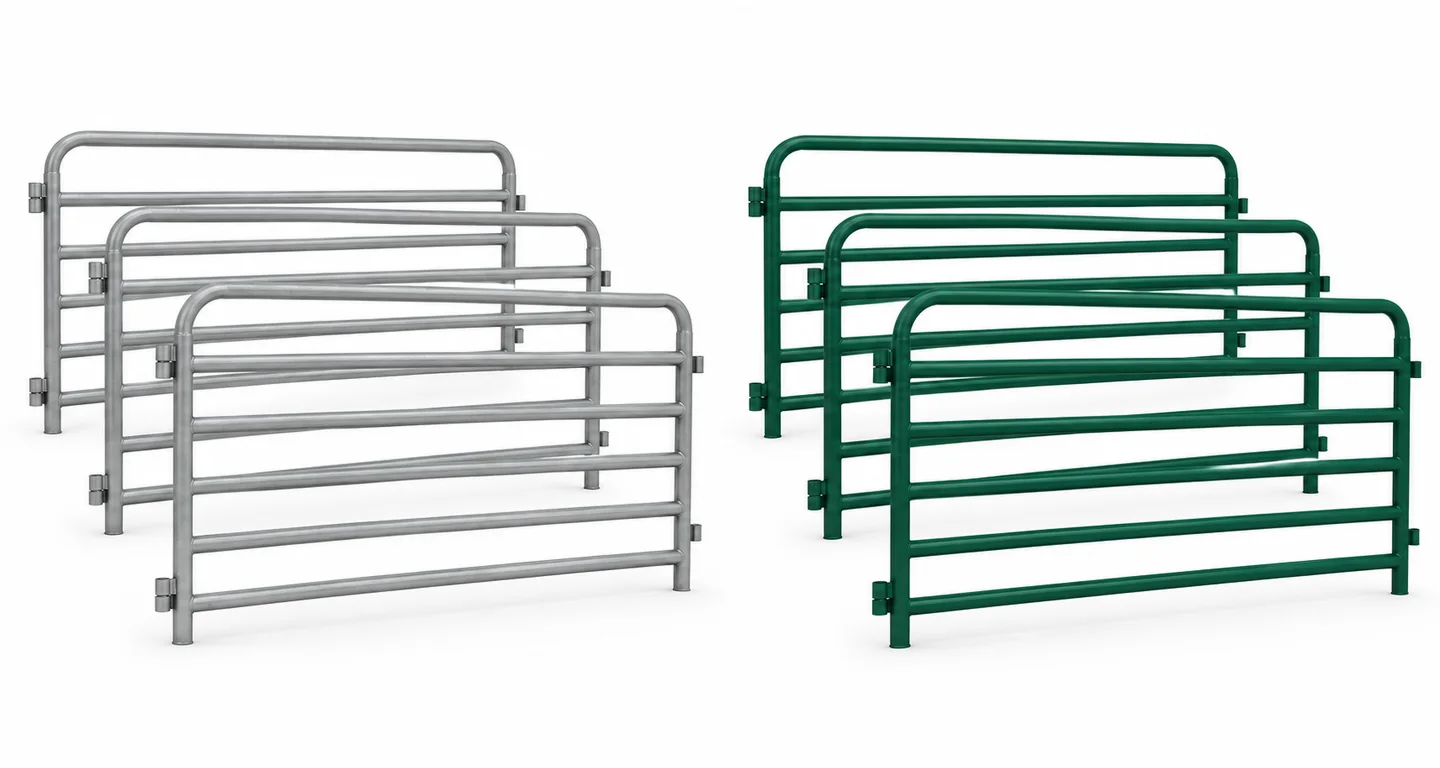

Modular ArrangementConnect panels around a paddock or round pen.
Practical AccessCoordinate panel runs with matching gates.
Custom DimensionsConfirm the required length and height on drawings.
Horse Panel Applications
Typical uses for this product. Images show the product, not installed-site photographs; confirm suitability for your project.
Round Pen Layouts
Specify compatible panel sections and connections for the layout.
Horse Yard Partitions
Separate working areas while planning suitable access.
Options and Finishes
Specify the size and finish of your horse panel with your order.
Hot-Dip Galvanized
By quotation
Powder Coated
By quotation
Custom Sizes
To approved drawing
Detailed Structural Photos
Review the connections and fabrication details of the selected horse panel design.

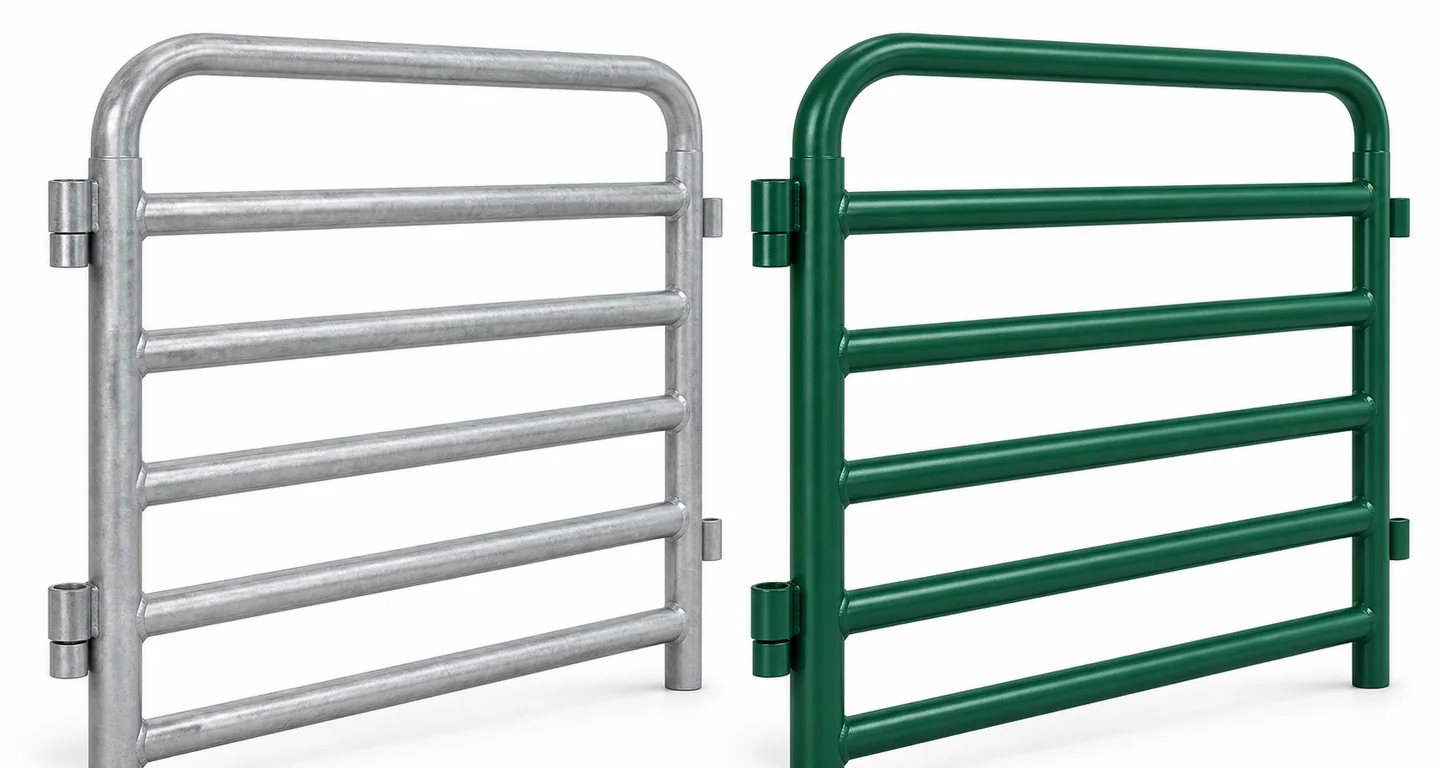

Post Connection Detail
Rail Welding Detail
End Post Design
Custom Horse Panel Support

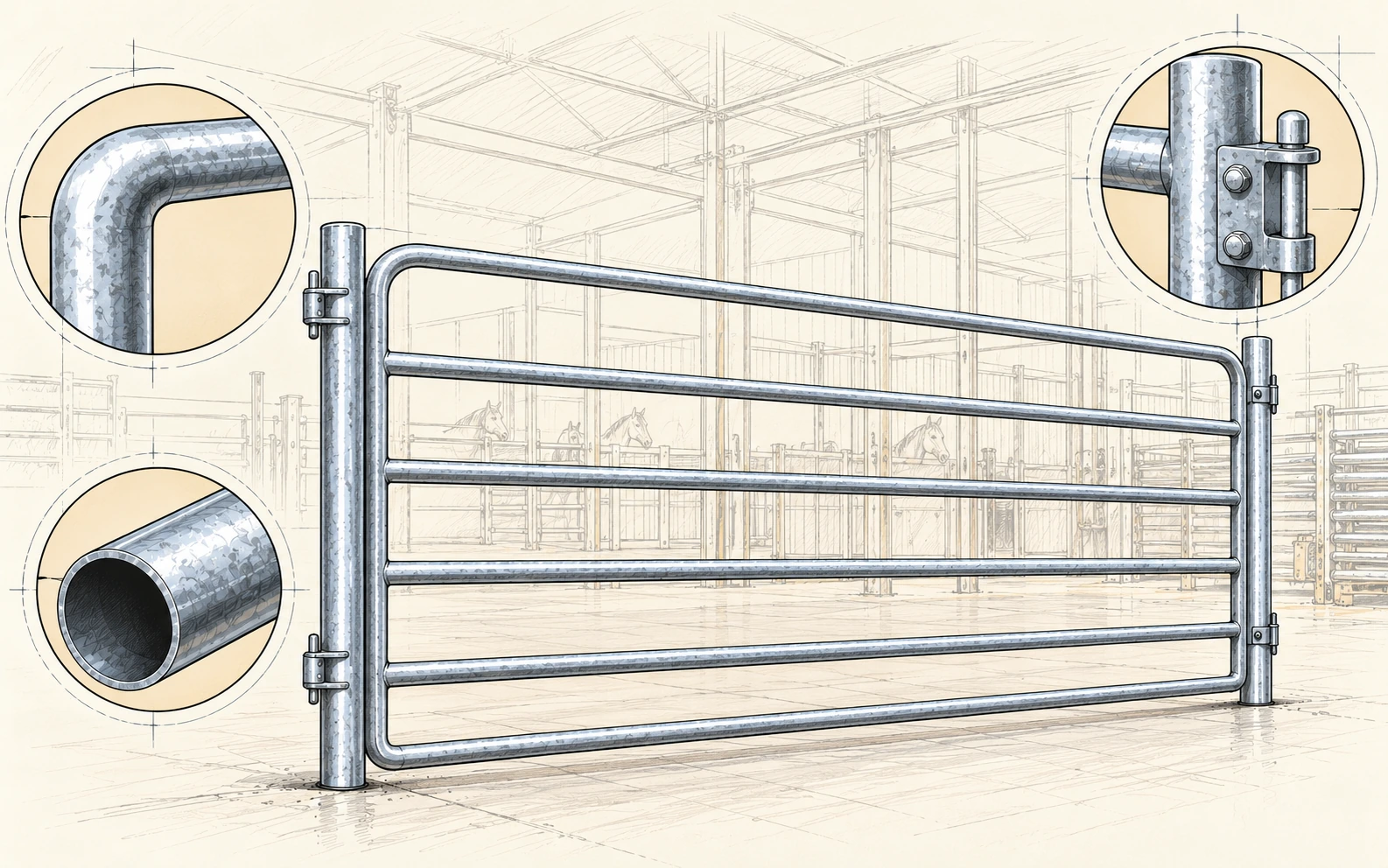

Share your site dimensions, animal type and layout. We can discuss the rail arrangement, steel tube sections, connection hardware and finish for a horse panel made to your approved drawing.
OEM / ODM Available
Custom Sizes and Designs
Professional Engineering Team
Fast Production and Delivery
Frequently Asked Questions
What are typical planning dimensions for a horse panel?
Comparable products use about 2.1–3.0 m lengths and 1.5–1.8 m heights. These are reference values; the final HRC design requires confirmation.
How many rails should I choose?
Five rails are shown as an example. The spacing and rail profile should be selected for your horses and yard layout.
Can it form a round pen?
Panels can be arranged for a round pen when the number of sections, diameter and gate positions are planned together.
Are finish colors available?
Ask about galvanized or powder-coated finishes and available colors for the quoted construction.
Can the panel connect to my existing yard?
Send the connection dimensions and photos so a compatible fitting can be evaluated.
Get a Quote for Your Horse Panel
Send us your target dimensions, livestock type and site plan. We will confirm a custom specification and quotation.
